bitrl::envs::gymnasium::GymnasiumEnvBase< TimeStepType, SpaceType > Class Template Reference

Base class for all Gymnasium environment wrappers. More...

#include <gymnasium_env_base.h>

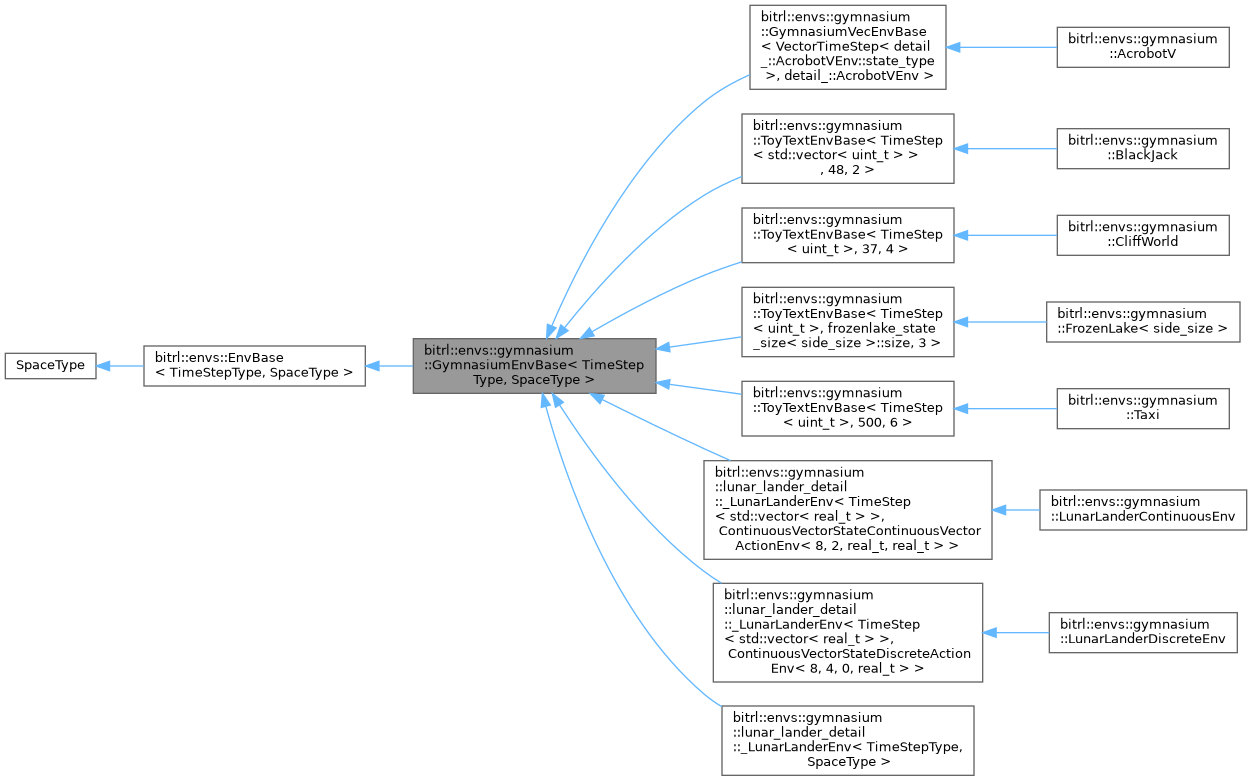

Inheritance diagram for bitrl::envs::gymnasium::GymnasiumEnvBase< TimeStepType, SpaceType >:

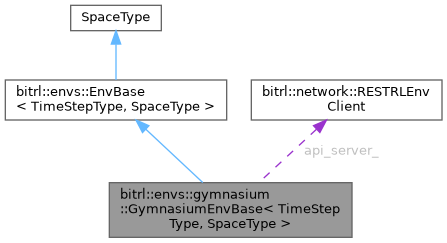

Collaboration diagram for bitrl::envs::gymnasium::GymnasiumEnvBase< TimeStepType, SpaceType >:

Public Types
typedef EnvBase< TimeStepType, SpaceType >	base_type
	Base environment type alias.
typedef base_type::time_step_type	time_step_type
	Time step returned at each environment step.
typedef base_type::state_space_type	state_space_type
	Type describing the observation/state space of the environment.
typedef base_type::action_space_type	action_space_type
	Type describing the action space of the environment.
typedef base_type::action_type	action_type
	Type representing a valid action to execute.
typedef base_type::state_type	state_type
	Type representing a state/observation returned by the environment.
Public Types inherited from bitrl::envs::EnvBase< TimeStepType, SpaceType >
typedef TimeStepType	time_step_type
	Alias for the type returned when stepping the environment.
typedef SpaceType::state_space	state_space_type
	Type describing the environment state space.
typedef SpaceType::state_type	state_type
	Type describing an individual state.
typedef SpaceType::action_space	action_space_type
	Type describing the environment action space.
typedef SpaceType::action_type	action_type
	Type representing an individual action.

Public Member Functions
virtual	~GymnasiumEnvBase ()
	Virtual destructor.
virtual bool	is_alive () const
	Check whether the environment is still alive/connected.
virtual void	close () override
	Close the environment on the server and release any resources.
virtual time_step_type	reset () override
	Reset the environment to an initial state using the reset options specified during make.
uint_t	n_copies () const
network::RESTRLEnvClient &	get_api_server () const
	Retrieve the REST API wrapper instance used for communication.
std::string	get_url () const
	Get the full URL for this environment endpoint on the server.
virtual time_step_type	reset ()=0
	Import the reset() overloads from the base class.
Public Member Functions inherited from bitrl::envs::EnvBase< TimeStepType, SpaceType >
virtual	~EnvBase ()=default
	Virtual destructor.
virtual void	make (const std::string &version, const std::unordered_map< std::string, std::any > &make_options, const std::unordered_map< std::string, std::any > &reset_options)=0
	Construct the environment instance.
virtual time_step_type	step (const action_type &action)=0
	Perform one step in the environment using an action.
const std::unordered_map< std::string, std::any > &	make_options () const noexcept
	Access the configuration options provided to make().
const std::unordered_map< std::string, std::any > &	reset_options () const noexcept
	Access the configuration options provided to make().
template<typename T >
T	read_option (const std::string &op_name) const
	Read a specific make() option and cast it to the requested type.
std::string	idx () const noexcept
	Get the id identifying this environment within a simulation batch. The id is valid only if make has been called.
bool	is_created () const noexcept
	Check if make() has successfully initialized the environment.
std::string	env_name () const noexcept
	Get the name of this environment instance.
std::string	version () const noexcept
	Get the environment version set during make().

Protected Member Functions
	GymnasiumEnvBase (network::RESTRLEnvClient &api_server, const std::string &name)
	Constructor.
	GymnasiumEnvBase (const GymnasiumEnvBase &)
	Copy constructor.
virtual time_step_type	create_time_step_from_response_ (const nlohmann::json &response) const =0
	Build a TimeStepType instance from a server JSON response.
Protected Member Functions inherited from bitrl::envs::EnvBase< TimeStepType, SpaceType >
	EnvBase (const std::string &idx=bitrl::consts::INVALID_STR, const std::string &name=bitrl::consts::INVALID_STR)
	Constructor (protected — for subclassing only).
	EnvBase (const EnvBase &)
	Copy constructor.
void	set_version_ (const std::string &version) noexcept
	Set internal version string.
void	set_idx_ (const std::string &idx) noexcept
	Set the id of the environment.
void	set_make_options_ (const std::unordered_map< std::string, std::any > &options) noexcept
	Store options for future access.
void	set_reset_options_ (const std::unordered_map< std::string, std::any > &options) noexcept
	Store reset options for future access.
void	invalidate_is_created_flag_ () noexcept
	Mark environment as not created.
void	make_created_ () noexcept
	Mark environment creation as successful.
time_step_type &	get_current_time_step_ () noexcept
	Mutable access to the current time step.
const time_step_type &	get_current_time_step_ () const noexcept
	Read-only access to the current time step.

Protected Attributes
network::RESTRLEnvClient *	api_server_
	Server wrapper handling communication with remote Gymnasium environment.

Additional Inherited Members
Static Public Attributes inherited from bitrl::envs::EnvBase< TimeStepType, SpaceType >
static const uint_t	DEFAULT_ENV_SEED = 42
	Default seed used in reset() if none provided.

Detailed Description

template<typename TimeStepType, typename SpaceType>
class bitrl::envs::gymnasium::GymnasiumEnvBase< TimeStepType, SpaceType >

Base class for all Gymnasium environment wrappers.

This template wraps a remote Gymnasium-compatible environment served through a REST API. It extends EnvBase and provides the common logic for environment reset, closing, and time-step handling via HTTP communication.

Template Parameters

TimeStepType	The type representing one interaction step with the environment.
SpaceType	The type describing the observation and action spaces.

Member Typedef Documentation

action_space_type

template<typename TimeStepType , typename SpaceType >

typedef base_type::action_space_type bitrl::envs::gymnasium::GymnasiumEnvBase< TimeStepType, SpaceType >::action_space_type

Type describing the action space of the environment.

action_type

template<typename TimeStepType , typename SpaceType >

typedef base_type::action_type bitrl::envs::gymnasium::GymnasiumEnvBase< TimeStepType, SpaceType >::action_type

Type representing a valid action to execute.

base_type

template<typename TimeStepType , typename SpaceType >

typedef EnvBase<TimeStepType, SpaceType> bitrl::envs::gymnasium::GymnasiumEnvBase< TimeStepType, SpaceType >::base_type

Base environment type alias.

state_space_type

template<typename TimeStepType , typename SpaceType >

typedef base_type::state_space_type bitrl::envs::gymnasium::GymnasiumEnvBase< TimeStepType, SpaceType >::state_space_type

Type describing the observation/state space of the environment.

state_type

template<typename TimeStepType , typename SpaceType >

typedef base_type::state_type bitrl::envs::gymnasium::GymnasiumEnvBase< TimeStepType, SpaceType >::state_type

Type representing a state/observation returned by the environment.

time_step_type

template<typename TimeStepType , typename SpaceType >

typedef base_type::time_step_type bitrl::envs::gymnasium::GymnasiumEnvBase< TimeStepType, SpaceType >::time_step_type

Time step returned at each environment step.

Constructor & Destructor Documentation

~GymnasiumEnvBase()

template<typename TimeStepType , typename SpaceType >

bitrl::envs::gymnasium::GymnasiumEnvBase< TimeStepType, SpaceType >::~GymnasiumEnvBase ( )

virtual

Virtual destructor.

GymnasiumEnvBase() [1/2]

template<typename TimeStepType , typename SpaceType >

bitrl::envs::gymnasium::GymnasiumEnvBase< TimeStepType, SpaceType >::GymnasiumEnvBase ( network::RESTRLEnvClient &  api_server, const std::string &  name  )

protected

Constructor.

Parameters

api_server	A reference to the REST server wrapper handling communication.
cidx	Index of this environment instance within a simulation.
name	Name of the environment.

GymnasiumEnvBase() [2/2]

template<typename TimeStepType , typename SpaceType >

bitrl::envs::gymnasium::GymnasiumEnvBase< TimeStepType, SpaceType >::GymnasiumEnvBase ( const GymnasiumEnvBase< TimeStepType, SpaceType > &  other )

protected

Copy constructor.

Member Function Documentation

close()

template<typename TimeStepType , typename SpaceType >

void bitrl::envs::gymnasium::GymnasiumEnvBase< TimeStepType, SpaceType >::close ( )

overridevirtual

Close the environment on the server and release any resources.

Implements bitrl::envs::EnvBase< TimeStepType, SpaceType >.

create_time_step_from_response_()

template<typename TimeStepType , typename SpaceType >

virtual time_step_type bitrl::envs::gymnasium::GymnasiumEnvBase< TimeStepType, SpaceType >::create_time_step_from_response_ ( const nlohmann::json &  response ) const

protectedpure virtual

Build a TimeStepType instance from a server JSON response.

Derived classes must parse the Gymnasium response and convert it into a fully constructed time step object.

Parameters

response

JSON payload returned by the server.

Returns

Constructed time_step_type instance.

Implemented in bitrl::envs::gymnasium::BlackJack, bitrl::envs::gymnasium::lunar_lander_detail::_LunarLanderEnv< TimeStepType, SpaceType >, bitrl::envs::gymnasium::lunar_lander_detail::_LunarLanderEnv< TimeStep< std::vector< real_t > >, ContinuousVectorStateContinuousVectorActionEnv< 8, 2, real_t, real_t > >, bitrl::envs::gymnasium::lunar_lander_detail::_LunarLanderEnv< TimeStep< std::vector< real_t > >, ContinuousVectorStateDiscreteActionEnv< 8, 4, 0, real_t > >, bitrl::envs::gymnasium::Acrobot, bitrl::envs::gymnasium::CartPole, bitrl::envs::gymnasium::MountainCar, bitrl::envs::gymnasium::Pendulum, bitrl::envs::gymnasium::AcrobotV, bitrl::envs::gymnasium::CliffWorld, bitrl::envs::gymnasium::FrozenLake< side_size >, and bitrl::envs::gymnasium::Taxi.

get_api_server()

template<typename TimeStepType , typename SpaceType >

network::RESTRLEnvClient & bitrl::envs::gymnasium::GymnasiumEnvBase< TimeStepType, SpaceType >::get_api_server ( ) const

inline

Retrieve the REST API wrapper instance used for communication.

Returns

Read-only reference to the server wrapper.

get_url()

template<typename TimeStepType , typename SpaceType >

std::string bitrl::envs::gymnasium::GymnasiumEnvBase< TimeStepType, SpaceType >::get_url

(

)

const

Get the full URL for this environment endpoint on the server.

Returns

Environment URL string.

is_alive()

template<typename TimeStepType , typename SpaceType >

bool bitrl::envs::gymnasium::GymnasiumEnvBase< TimeStepType, SpaceType >::is_alive ( ) const

virtual

Check whether the environment is still alive/connected.

Returns

True if the wrapper can still communicate with the server.

n_copies()

template<typename TimeStepType , typename SpaceType >

uint_t bitrl::envs::gymnasium::GymnasiumEnvBase< TimeStepType, SpaceType >::n_copies

(

)

const

Get the number of copies on the server for this environment

Returns

reset() [1/2]

template<typename TimeStepType , typename SpaceType >

GymnasiumEnvBase< TimeStepType, SpaceType >::time_step_type bitrl::envs::gymnasium::GymnasiumEnvBase< TimeStepType, SpaceType >::reset ( )

overridevirtual

Reset the environment to an initial state using the reset options specified during make.

Returns

Initial time step after reset

Implements bitrl::envs::EnvBase< TimeStepType, SpaceType >.

reset() [2/2]

template<typename TimeStepType , typename SpaceType >

virtual time_step_type bitrl::envs::EnvBase< TimeStepType, SpaceType >::reset ( )

virtual

Import the reset() overloads from the base class.

Implements bitrl::envs::EnvBase< TimeStepType, SpaceType >.

Member Data Documentation

api_server_

template<typename TimeStepType , typename SpaceType >

network::RESTRLEnvClient* bitrl::envs::gymnasium::GymnasiumEnvBase< TimeStepType, SpaceType >::api_server_

protected

Server wrapper handling communication with remote Gymnasium environment.

---

The documentation for this class was generated from the following file:

• libs/bitrl/src/bitrl/envs/gymnasium/gymnasium_env_base.h
